Duct work sizing

Duct work sizing

PostBy: georgedj On: Fri Nov 30, 2012 10:02 pm

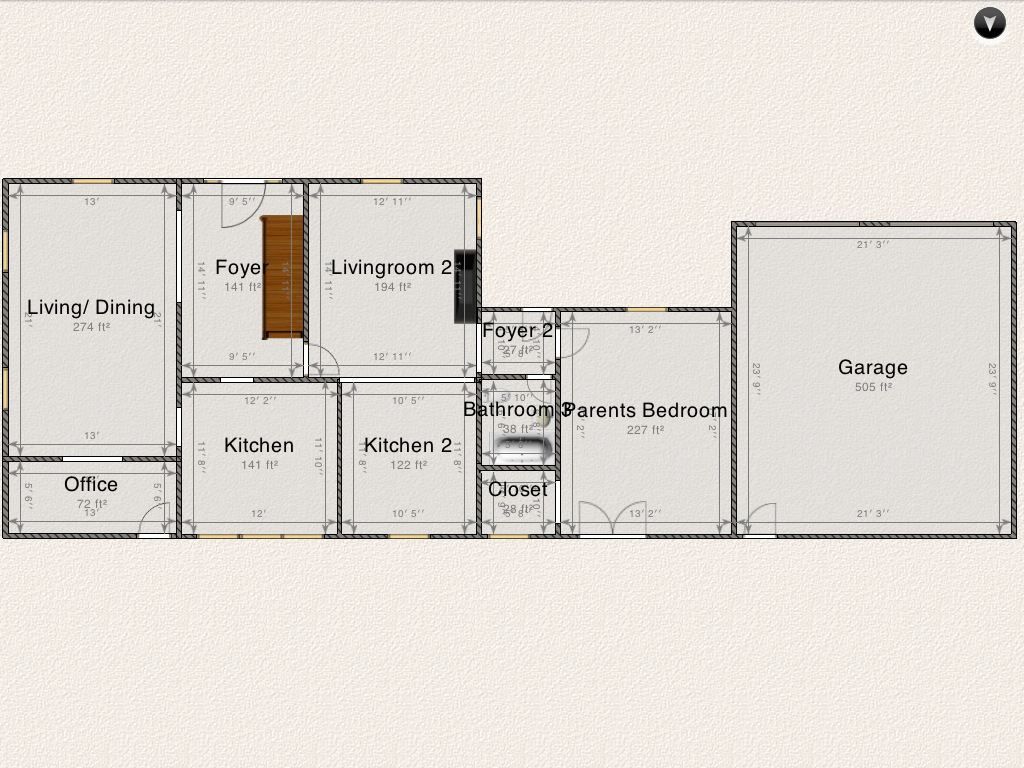

I want to install a air handler for my stove and i dont know how to size it

The coal stove is in the basement under the livingroom 2 i hope some one can help me

The walls are 2x4 with r13


georgedj

Stove/Furnace Make: Stratford
Stove/Furnace Model: SC100

Re: Duct work sizing

PostBy: McGiever On: Sat Dec 01, 2012 8:18 am

Sorry, no answers. Just some more questions. ;)

A stove is not a furnace...but sometimes heat distribution can be improved.

What is the manufacturer's btu output rating of the stove?

Would you be jacketing the entire stove or what?

What is the existing heating distribution system?

Do you plan to tie into existing duct work or what?

This could be simple or not.
Would you be pushing through existing duct-work and connecting at the main trunk of duct vs just somewhere in duct down stream?
Or, do you just want to poke a hole through the floor and push air up into the space above?
Would you be incorporating a Return Air Duct for this air handler?

It is hard to advise without more info. :)
McGiever

Stoker Coal Boiler: AXEMAN-ANDERSON 130 "1959"
Hot Air Coal Stoker Stove: HARMAN MAGNUM
Hand Fed Coal Stove: RADIANT HOME AIR BLAST
Baseburners & Antiques: OUR GLENWOOD 111 BASEBURNER "1908"
Coal Size/Type: PEA / ANTHRACITE, NUT-STOVE / ANTHRACITE
Other Heating: Ground Source Heat Pump
Stove/Furnace Make: Hydro Heat /Mega Tek

Re: Duct work sizing

PostBy: georgedj On: Sat Dec 01, 2012 7:10 pm

McGiever wrote:Sorry, no answers. Just some more questions. ;)

A stove is not a furnace...but sometimes heat distribution can be improved.

What is the manufacturer's btu output rating of the stove?
Im not sure i cant find any info on my Stratford stove to find out the BTU

Found online 15,000-100,000 BTU


Would you be jacketing the entire stove or what?
I Was thinking about reversing my Blower on the stove into the return of the system

What is the existing heating distribution system?
I dont have any i have a stove in the basement that keeps my first floor 65 to 67 so i was going to install a A/C unit any way with all the duct work and use that to heat the first floor

Do you plan to tie into existing duct work or what?
I dont have existing but im planning to tie into new ductwork once i get help sizing the main trunk



This could be simple or not.
Would you be pushing through existing duct-work and connecting at the main trunk of duct vs just somewhere in duct down stream?
Or, do you just want to poke a hole through the floor and push air up into the space above?
Would you be incorporating a Return Air Duct for this air handler?

It is hard to advise without more info. :)


I hope that helped
georgedj

Stove/Furnace Make: Stratford
Stove/Furnace Model: SC100


Re: Duct work sizing

PostBy: georgedj On: Sat Dec 01, 2012 7:19 pm

I was wondering if there would be any problem with reversing the fan on the stove to supply the return
georgedj

Stove/Furnace Make: Stratford
Stove/Furnace Model: SC100

Re: Duct work sizing

PostBy: McGiever On: Sat Dec 01, 2012 10:59 pm

georgedj wrote:
McGiever wrote:Sorry, no answers. Just some more questions. ;)

A stove is not a furnace...but sometimes heat distribution can be improved.

What is the manufacturer's btu output rating of the stove?
Im not sure i cant find any info on my Stratford stove to find out the BTU

Found online 15,000-100,000 BTU


Would you be jacketing the entire stove or what?
I Was thinking about reversing my Blower on the stove into the return of the system
Reversing stove blower...if it were even possible, would be subjecting blower to excessive heat and give it a very short life. :(

Some stove mfg. get the heat out by blocking the normal outlet(s) and allow the heated air to exit through a added collar cut into the outer shell of the stove to which sheet metal duct is extended to a remote location.

What is the existing heating distribution system?
I dont have any i have a stove in the basement that keeps my first floor 65 to 67 so i was going to install a A/C unit any way with all the duct work and use that to heat the first floor

Do you plan to tie into existing duct work or what?
I dont have existing but im planning to tie into new ductwork once i get help sizing the main trunk
read here>>> http://www.johnrwhite.net/three%20steps%20to%20duct%20sizing.htm


This could be simple or not.
Would you be pushing through existing duct-work and connecting at the main trunk of duct vs just somewhere in duct down stream?
Or, do you just want to poke a hole through the floor and push air up into the space above?
Would you be incorporating a Return Air Duct for this air handler?

It is hard to advise without more info. :)


I hope that helped
McGiever

Stoker Coal Boiler: AXEMAN-ANDERSON 130 "1959"
Hot Air Coal Stoker Stove: HARMAN MAGNUM
Hand Fed Coal Stove: RADIANT HOME AIR BLAST
Baseburners & Antiques: OUR GLENWOOD 111 BASEBURNER "1908"
Coal Size/Type: PEA / ANTHRACITE, NUT-STOVE / ANTHRACITE
Other Heating: Ground Source Heat Pump
Stove/Furnace Make: Hydro Heat /Mega Tek

Re: Duct work sizing

PostBy: georgedj On: Sun Dec 02, 2012 12:45 pm

Thanks i will work on that today
georgedj

Stove/Furnace Make: Stratford
Stove/Furnace Model: SC100
